iDEAL MSC-6KLP 6,000 lb Mobile Single Column Lift – Low Profile

iDEAL iMOBILE MSC-6KLP 6,000 lb Low-Profile Mobile Single Column Lift

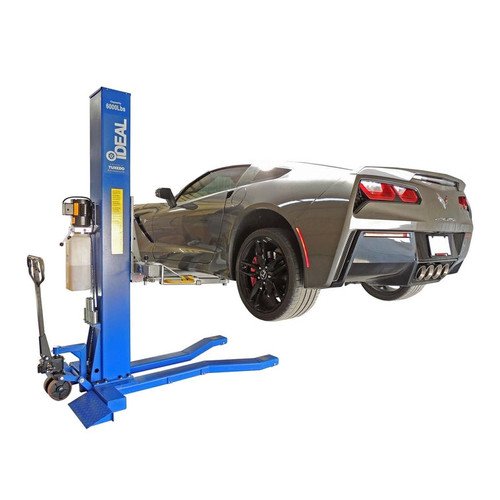

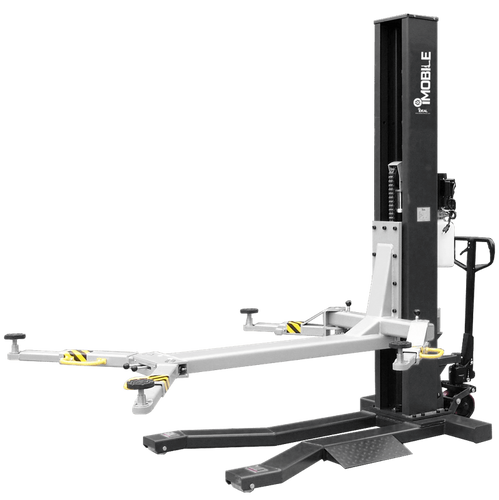

The iDEAL iMOBILE MSC-6KLP is a versatile 6,000 lb capacity mobile vehicle lift designed for garages and professional shops where floor space and portability are important. Its low-profile construction, drive-over ramps, and mobile design provide an alternative to permanently mounted two-post lifts.
With a lifting height of approximately 72 inches, the MSC-6KLP provides convenient access to the underside of many vehicles for inspections, maintenance, and repair work. Its open design also maintains useful access around the exterior of the vehicle for wheel, brake, suspension, and general service.
Key Features
6,000 lb Lifting Capacity: Designed to accommodate a wide range of compatible passenger vehicles and light-duty applications.
Low-Profile Design: Less than 4 inches high, allowing easier positioning beneath compatible low-clearance vehicles.
Approximately 72″ Lifting Height: Raises compatible vehicles high enough to provide convenient access to the undercarriage for service and inspection.
Drive-Over Ramps: Allows vehicles to drive over the lift structure for convenient positioning and loading.
Mobile & Portable Design: Can be repositioned when needed, making it useful for shops or garages where permanent lift installation is impractical.
Pallet-Jack Positioning: The lift’s design allows it to be positioned beneath a compatible vehicle for loading and service.
Rigid Base Construction: Heavy-duty base structure provides a stable foundation during lifting operations.
Single-Point Lock Release: Provides convenient operation of the lift’s mechanical safety locking system.
Telescoping Two-Stage Swing Arms: Adjustable arms help accommodate different compatible vehicle lifting-point locations.
Double-Telescoping Design: Provides additional adjustment flexibility when positioning the lift arms.
Open Vehicle Access: The single-column configuration provides useful access around the vehicle for wheel, brake, suspension, and maintenance work.
Product Specifications
Brand
iDEAL / iMOBILE
Model
MSC-6KLP
Product Type
Mobile Single Column Vehicle Lift
Maximum Capacity
6,000 lbs
Maximum Lifting Height
Approx. 72″
Low-Profile Height
Under 4″
Loading Configuration
Drive-Over / Mobile Positioning
Lift Arms
Telescoping Two-Stage Swing Arms
Safety Lock
Single-Point Lock Release
Base
Rigid Base Construction
Portability
Mobile / Repositionable
Ideal for Garages & Professional Shops
The iMOBILE MSC-6KLP is particularly useful for homeowners with limited garage space, automotive workshops looking to improve workflow, inspection work, routine maintenance, and wheel or brake service. Its mobile configuration allows valuable floor space to be used more efficiently than with many permanently installed lift systems.
Important: Always verify the vehicle’s weight, designated lifting points, dimensions, and compatibility with the lift before operation. Never exceed the manufacturer’s rated 6,000 lb capacity.
